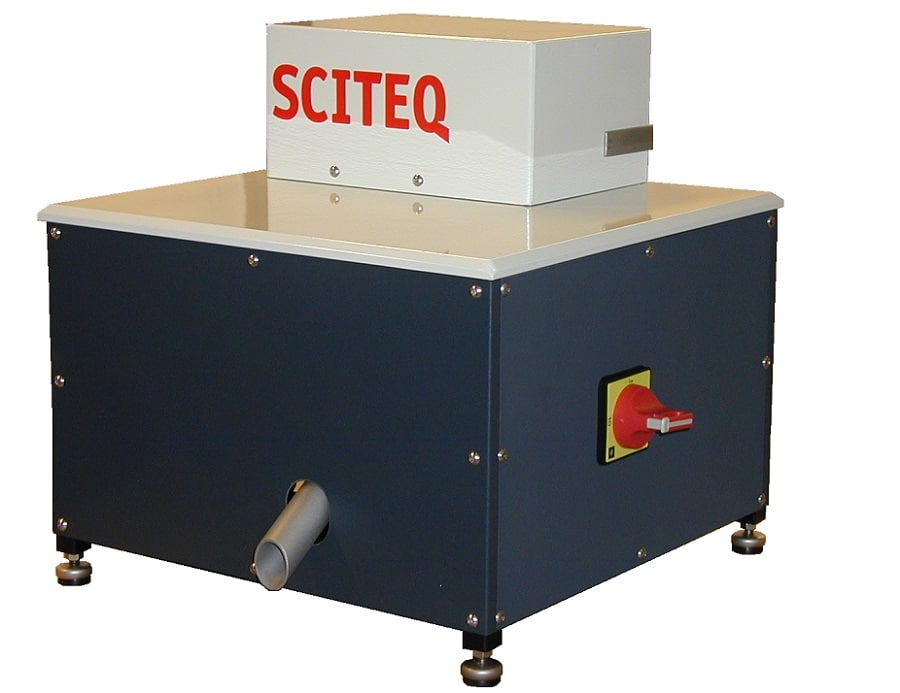

Laboratory granulator

The SCITEQ laboratory granulator is designed for preparation of samples for MFI test and other small granulating jobs. The machine is a small table top model, easy to operate, with manual feeding.

Product highlights

  • table model
  • two-in-one model
  • high precision granulation
  • easy maintenance
  • simple to operate

Description

The convenient table laboratory granulator may be used to prepare for tests of melt flow index on raw materials as well as granulated finished products. The SCITEQ laboratory granulator, granulation is easier and safer. The equipment consists of a rotating cutting device driven by a small electric motor via belt drive system

The laboratory granulator is a two-in-one machine which makes granules of both pipe slices up to 4mm thickness and from the MFI sticks. Complies with BS 2782, ISO 1133, DIN 53 735, ASTM 1238 Methods A and B, and equivalent. Complying with the standards ASTM D 1238, BS 2782, DIN 53 735 and ISO 1133.

For more information and technical specifications about the convenient table laboratory granulator please see the brochure.

Associated equipment to the convenient table laboratory granulator

Associated equipment

Standards:

Specifications

Cutting speed:

80-90 rpm

Cutting tool:

Ø 90 mm

No. of cutting teeth:

1 cutting tooth

Stroke speed:

80 strokes per minute (approx.)

Two-in-one model:

makes granules of both pipe slices up to 4mm thickness and from the MFI sticks

Max. pipe slice thickness:

3 or 4 mm according to customer specifications

Max. MFI stick diameter:

3 or 4 mm according to customer specifications

Cutting piece size:

3x3 mm (standard) or 4x4 mm (optional)

Power supply:

220V - 50/60 Hz

Dimensions:

540x420x400mm (LxWxH)
Weight 32 kg.
