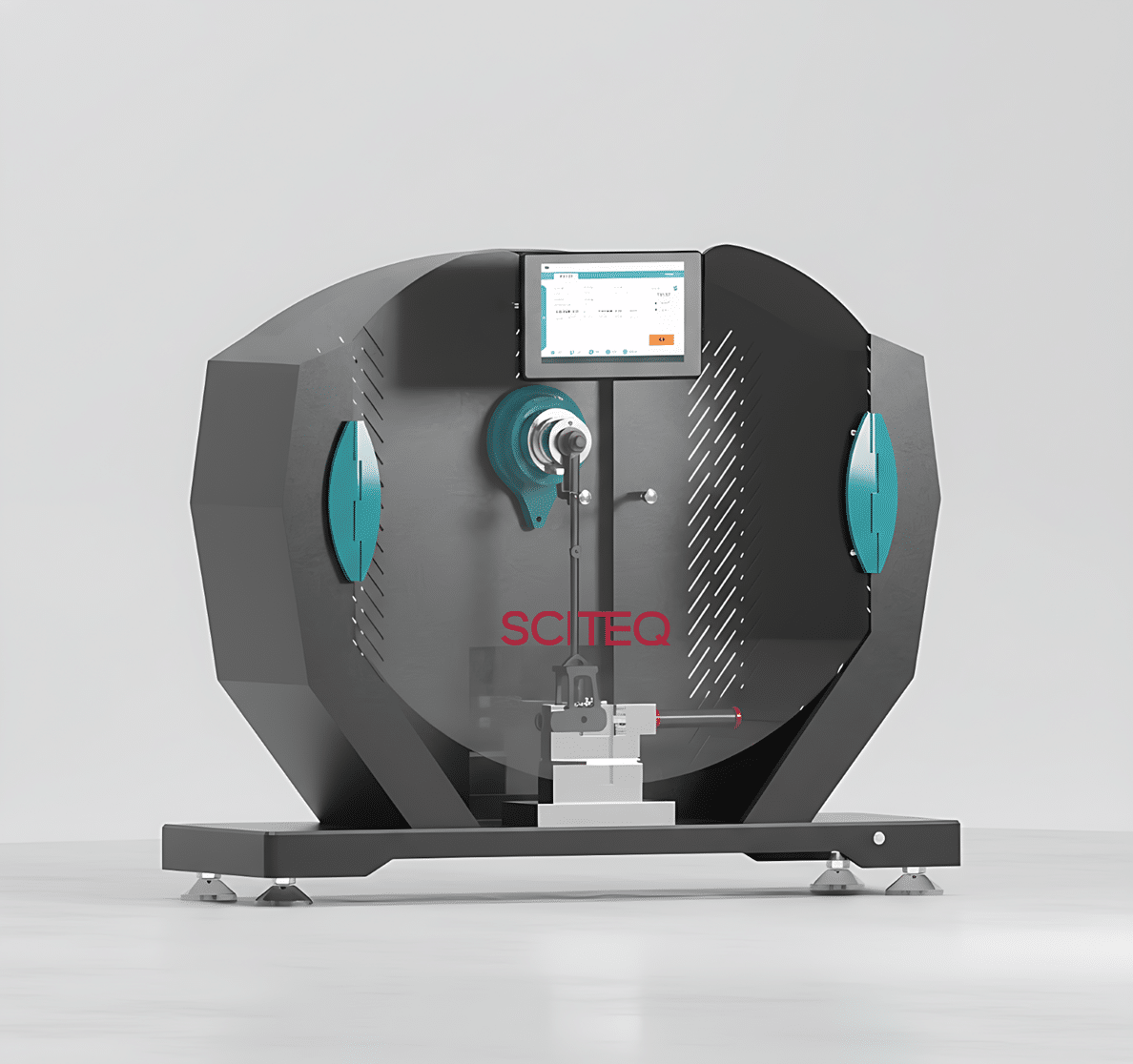

The SCITEQ Charpy pendulum impact tester is used to conduct resilience tests on rigid plastic materials in order to determine their impact fragility characteristics under standard stress conditions. The test method conforms to ISO 179 – Part 1 (non-instrumented impact test).

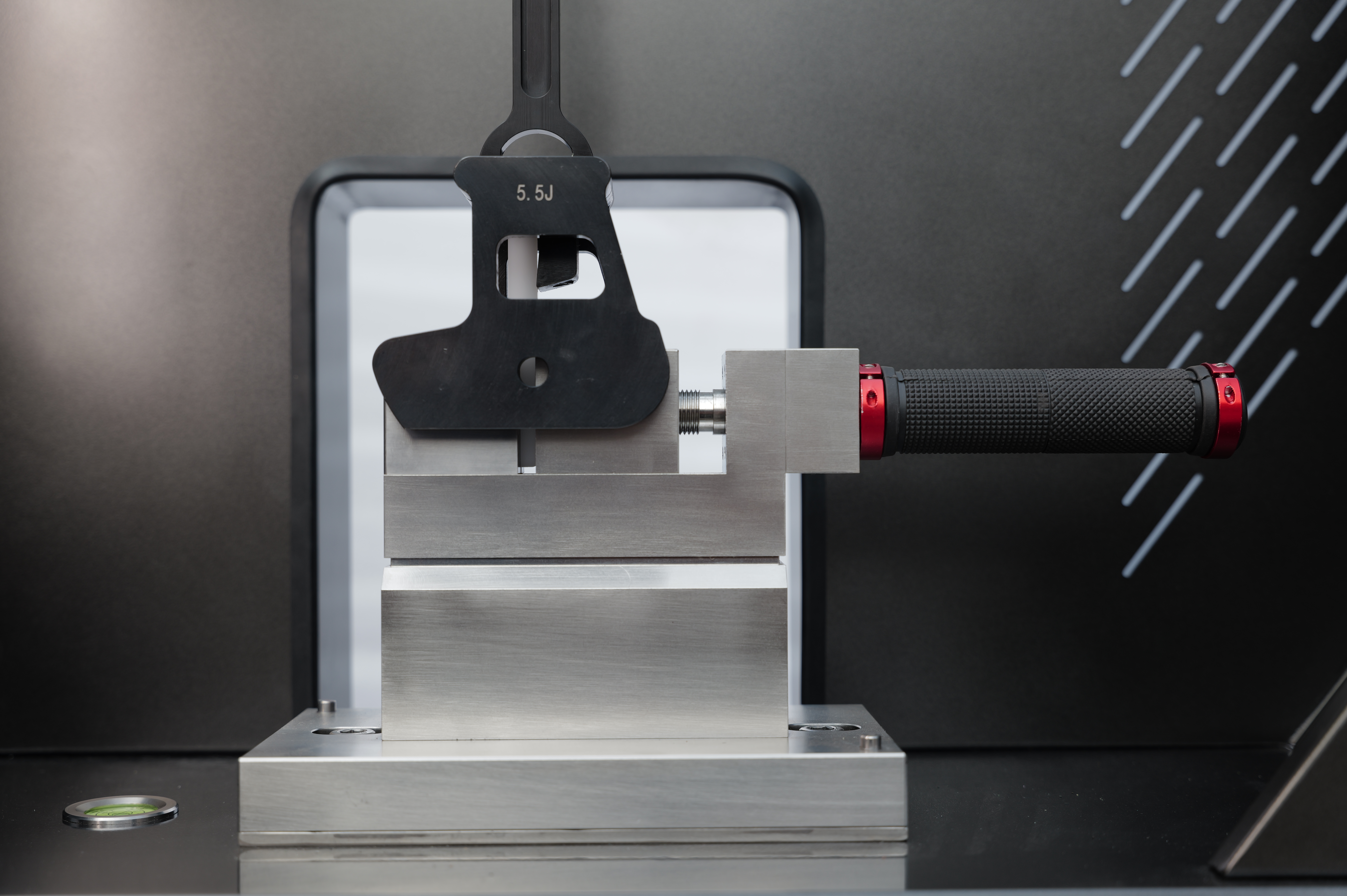

The pipe sample can be cut by means of a copy milling machine. The pipe sample, supported near its ends as a horizontal beam, is impacted by a single blow of a striker, with the line of impact midway between the supports, and bent at a high, nominally constant, velocity.
The Charpy pendulum impact tester complies with the following standards: BS 2782, ISO 179, ISO 180, DIN 51 222, ASTM 256, ISO 8256 and ASTM D4812.
For more information and technical specifications please download the brochure.
Associated equipment
SCJ5: 2,9 m/s.
SCJ50: 3,8 m/s.
SCJ5: 0,5J, 1J, 2J, 4J, 5J
SCJ50: 7,5J/15J or 25J/50J.
SCJ5: 115°
SCJ50: 150°
SCJ5: ±0.1%
SCJ50: ±0.1%
220-240V AC, 50-60Hz
550 x 300 x 890 mm. (LxWxH)
Weight 110 kg.
There are numerous international standards referring to testing. We supply testing equipment to fulfill any national and international testing standard within our field of business. In case you do not find the standard you are looking for in the below list, please contact us for further information
Standard test methods for determining the Izod pendulum impact resistance of plastics.
Standard test method for unnotched cantilever beam impact resistance of plastics.
Methods of testing - Plastics - Introduction.
Materials testing machines - Impact test - Particular requirements on pendulum impact testing machines with a capacity of nominal energy <= 50 J and verification.
Determination of Charpy impact strength. For conducting resilience tests on rigid plastic materials in order to determine their impact fragility characteristics under standard stress conditions.
Determinaton of Izod impact strength. For conducting resilience tests on rigid plastic materials in order to determine their impact fragility characteristics under standard stress conditions.
Plastics - Determination of tensile-impact strength.
