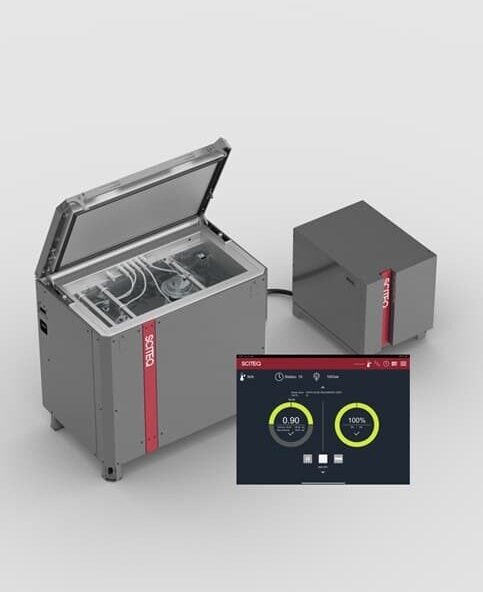

SIGMAlite pressure

For pressure testing plastic pipes and fittings in PE, PEX, PVC, PP, PB etc., glass fibre pipes, tubes and hoses. The SIGMAlite unit is a compact plug-and-play pressure test solution with five fixed pressure stations and is ideal for smaller layouts.

SIGMA is the new generation of pressure testing helping our customers prepare for IoT and Industry 4.0. System complies with the standards ISO 1167, EN 12 293 ASTM, D1598  and ASTM D 1599 and equivalent.

Product highlights

  • accurate and easy
  • Four user levels
  • self-diagnostic & troubleshooting system
  • preventive maintenance system
  • easy-to-set-up recipes
  • visual alarm in case of irregularities

Description

The compact plug and play test unit with five fixed individual pressure stations ideal for smaller layouts. Incl. DPC system and ABX valves ensures consistent and unparalleled pressure accuracy. This cost effective and reliable solution is easy to setup and operate from any device via the web-based software.

The alarm visually alerts the user, in case of irregularities in the ongoing test.

SIGMA pressure solution determines the resistance (both long term and short term) to internal pressure on thermoplastic pipes, fittings and assemblies for conveyance of fluids.
The product design complies with following pipe diameter configurations:

Dimensions: B490xD620xH600 mm

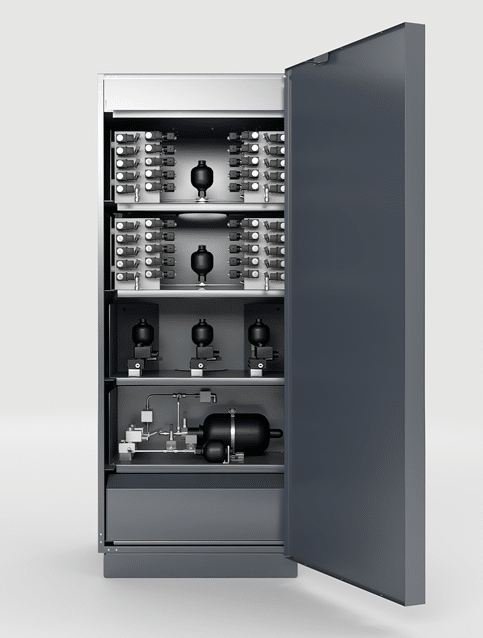

DPCS – Dynamic Pressure Control System

SCITEQ’s intelligent Dynamic Pressure Control System ensures that test pressures are maintained with unparalleled accuracy no matter what size sample is connected to the system. Static, burst and cyclic testing can all be accommodated.

Alarm

The built-in alarm light instantly alerts the operator visually in case of irregularities in the ongoing test.

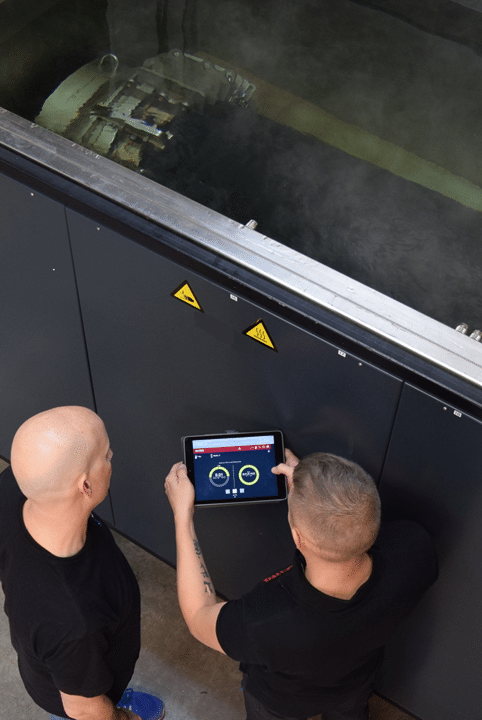

Software

The browser-based SIGMA software is accessible from any device – any time, anywhere. The advantages are among others:

  • 4 different user levels
  • Easy recipe set-up
  • Dynamically adjusted real-time finish time
  • Multiple simultaneous users
  • Multiple specimen test per station
  • SQL database compatible with all server types

The fast and extremely easy to use interface enables easy operation and control of few as well as many simultaneous pressures tests with features such as dynamically adjusted finish time, full station overview and click less maneuvering.

Recipes are quickly set-up, saving time when starting up a new test (diameter) as well as repeating saved test parameters. Up to four different user-levels from Basic to Advanced, ensuring not only easy operation, but also offering simultaneous ‘view-only’ access for your interested partners and clients.

For more information and technical specifications please got to SIGMA software or check the brochure below.

Specifications

Output:

Up to 100 bar regulated pressure output

Flow per station:

Max. flow 7 l/min

Capacity:

5 individual pressure stations

Electrical supply:

3 phase 380-400Vac + N + PE, 16amps

Water supply:

mains water supply, 2-6 bar

Drain:

lead to gravity fed waste water

Dimensions:

602x483x624 mm (LxWxH)
