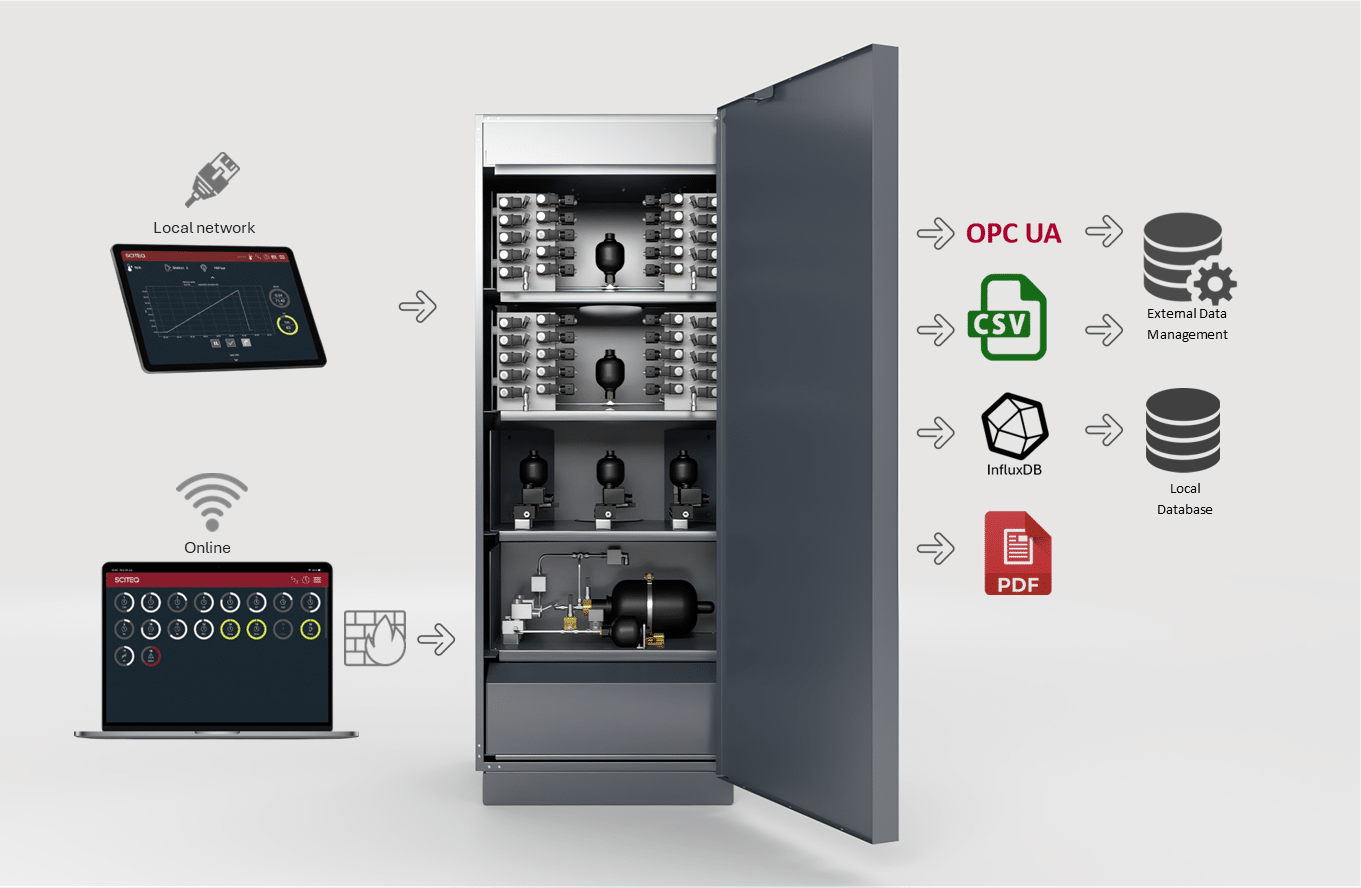

Test systems connect wirelessly and securely, whether online or on your local network. Data flows directly into PDF reports and CSV files, with live exchange enabled via OPC UA.
Built-in cybersecurity ensures compliance with CRA and NIS2, while an integrated InfluxDB database mirrors test data in real time to your local server — from there, extraction to external data management systems is fully enabled.
It gives operators a simple way to set up recipes, start tests in just three clicks, monitor progress in real time, and generate reports instantly
SIGMA Software supports secure remote access for software updates, diagnostics, and service through internal Ethernet and external web access. With encrypted VPN connectivity and an integrated firewall in the site manager, the platform is built to provide secure and reliable remote support.
Its cybersecurity-focused design helps manufacturers prepare for the Cyber Resilience Act (CRA) requirements entering into effect in 2027.
SIGMA Standard includes all features for testing according to ISO 1167, ASTM D1598 & D1599. You can configure your SIGMA solution according to your testing needs. SIGMA is the most flexible and cost-effective sotfware, offering a list of optional extra features helping you test even smarter. Opt-in and out as your need changes!
The auto calibration add-on allows each test station to calibrate itself automatically against a high-precision 0.1% FS reference transmitter, which would normally require external calibration equipment, and without stopping ongoing tests. The benefits are overall higher level of accuracy and on-demand pressure accuracy verification before each test.
This feature demands hardware installation.
The dynamic emergency stop feature for pressure testing gives operators the ability to immediately pause a station or trigger a full drain sequence, stopping the pump and draining the powerpack as needed. Rather than a simple on/off interruption, the system responds in a controlled way, bringing the test to a safe and immediate halt while managing pressure and fluid safely through the drain process.
The main benefit is speed: because the ongoing test can be stopped quickly and cleanly, the station is ready for a new setup much faster than it would be with a standard manual shutdown. This reduces downtime between tests, minimizes the risk of damage or unsafe conditions when something needs to be interrupted, and gives operators confidence that they can react instantly without waiting on a slow or multi-step stop procedure.
This feature demands hardware installation.
SIGMA Software generates PDF reports automatically and exports test data to CSV with live exchange enabled via OPC UA – or to external data management systems such as Pipeson software.
The platform integrates with corporate IT systems and supports industrial communication standards. SIGMA Software is designed to support IoT environments and Industry 4.0 workflows, enabling connected testing.
The back-up feature for the Influx test database enables automatic mirroring of all test data onto your own server. Instead of relying solely on the local database, test results are continuously and automatically copied to an external location that you control, creating a reliable, up-to-date backup outside the SIGMA system itself.
The main benefit is data security and peace of mind: because the mirroring happens automatically, there’s no need for manual backup routines or the risk of losing critical test data due to hardware failure.
How can SIGMA support your testing? Contact us for more info
SCITEQ pressure test systems are fully compliant with ISO 1167, ASTM D1598, D1599, and equivalent standards. It gives operators a simple way to set up recipes, start tests in just three clicks, monitor progress in real time, and generate reports instantly.
Intuitive recipe wizard for customized, repeatable test setups and consistency. All test parameters are configurable and easy to setup. With smart search function and 5,000 unique recipes.
The dynamically adjusted total test time automatically recalculates the expected test completion time whenever a test is stopped, paused, or when the sample behavior deviates from the expected profile.
SIGMA is NIS2 and CRA (EU Cyber Security Act) compliant. Complying with the requirements for cybersecurity, software traceability, update mechanisms, and documentation.
PI (process & instrumentation) diagram with realtime of reservoir/component setup, with irregularity highlighting. The alarm function enables fast corrective action.
Conditioning-specific station overview – controller shows assigned stations per conditioning unit. Temperature interface enabled for up to 10 internal or external conditioning system
The older SCITEQ test system X-ACT can be upgraded to SIGMA using the hardware still in funtion in the old system, and adding the SIGMA control hardware and software. Ask us for more information about this cost effective solution on how to modernize old test equipment.
The fast and extremely easy-to-use interface enables easy control and overview of your tests and click less maneuvering.
SIGMA Software is SCITEQ’s cloud-based test automation software for controlling, monitoring, and reporting across SCITEQ test systems.
SIGMA Software offers fast recipe setup, real-time monitoring, instant report generation, predictive maintenance support, SQL database compatibility, OPC UA integration, and secure remote access.
Yes. SIGMA Software supports secure remote updates, diagnostics, and service through encrypted VPN connectivity and an integrated firewall in the site manager.
SIGMA software is accessible from smart phone, tablet and pc. It is optimized for touch, but can also be operated with mouse & keyboard. We recommend operation on iPad (offered as option for all SIGMA test equipment).
SIGMA software is optimized for touch and can be operated from both Android and IOS smart phone. SIGMA can also run from tablet and pc. We recommend operation on iPad (offered as option for all SIGMA test equipment).
SIGMA software is optimized for touch and can be operated from both Android and IOS tablets. SIGMA can also run from smart phone and pc. We recommend operation on iPad (offered as option for all SIGMA test equipment).
Yes. SIGMA software is optimized for touch and can be operated from both Android and IOS tablets.
Yes, our service team is ready to help you online weekdays 8 am to 4 pm (CET). In case you need urgent support or would like to schedule an online session, please contact us at [email protected].
SIGMA Software exports test data to an SQL database compatible with a wide range of servers, enabling flexible access, processing, and integration.
Yes. SIGMA Software integrates with corporate IT systems and supports OPC UA communication for Industry 4.0 and IoT environments.
the recipe system allows users to create, save, and reuse test parameters to ensure consistent and efficient testing workflows.
Yes. SIGMA Software supports multiple user levels, including view-only access for partners and clients.
SIGMA Software is designed for use with all SCITEQ test systems.
